RCT POWER · Backup
RCT AC Power Switch
Automatic backup switching for RCT Power Storage systems.
A fast-switching backup power solution designed to keep essential household circuits running during grid outages. Working seamlessly with the RCT storage system, the Power Switch automatically disconnects from the grid and transitions the home to backup operation in under 20 ms.
Highlights
- 6000 VA — Backup output
- <20 ms — Switch-over time
- IP65 — Enclosure rating
- 10 yr — Warranty
Features
BACKUP POWER

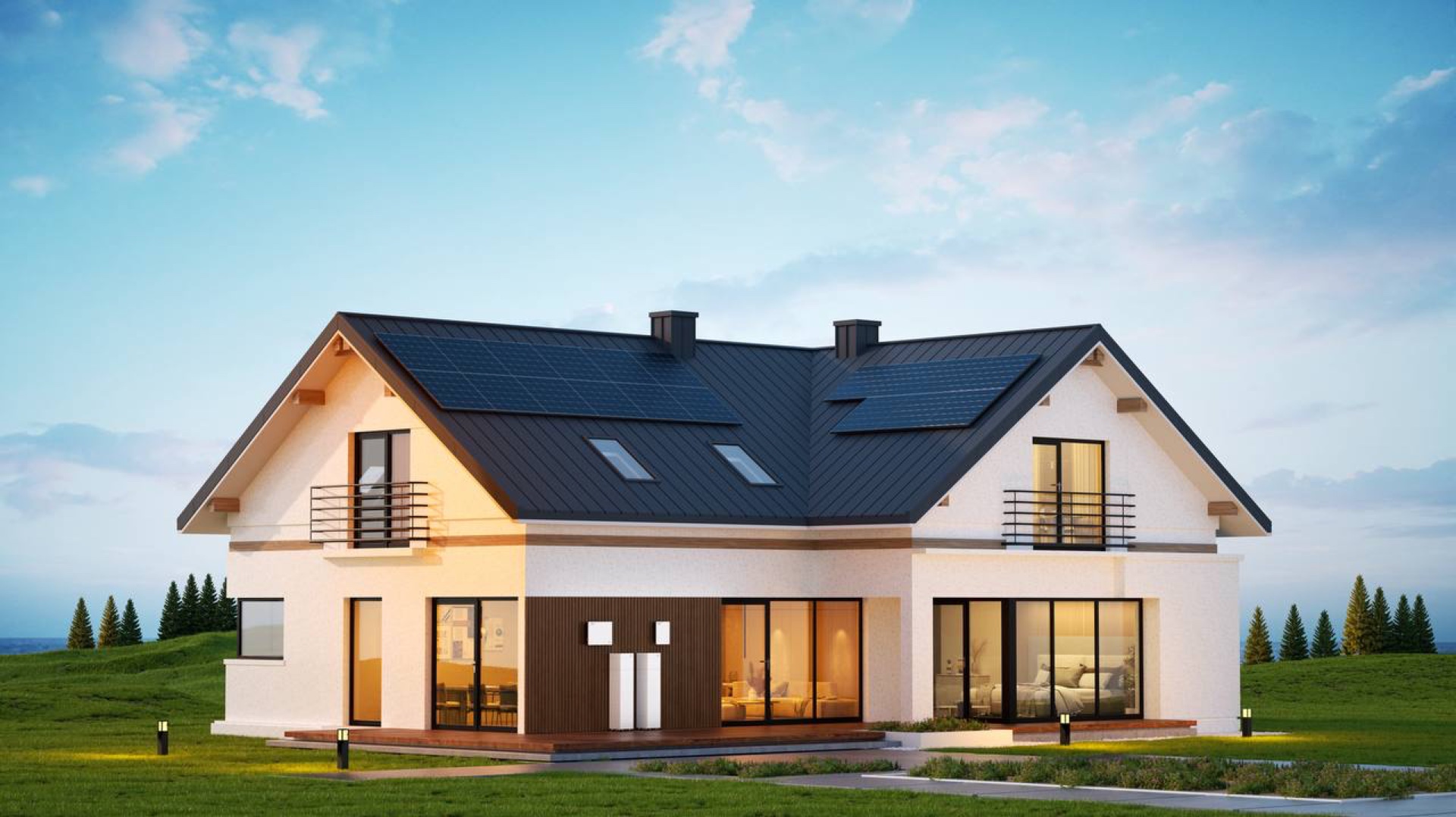

Keeps the house running when the grid fails.
Keeps selected household loads supplied during grid failure when paired with an RCT Power Storage system.
AUTOMATIC SWITCHING

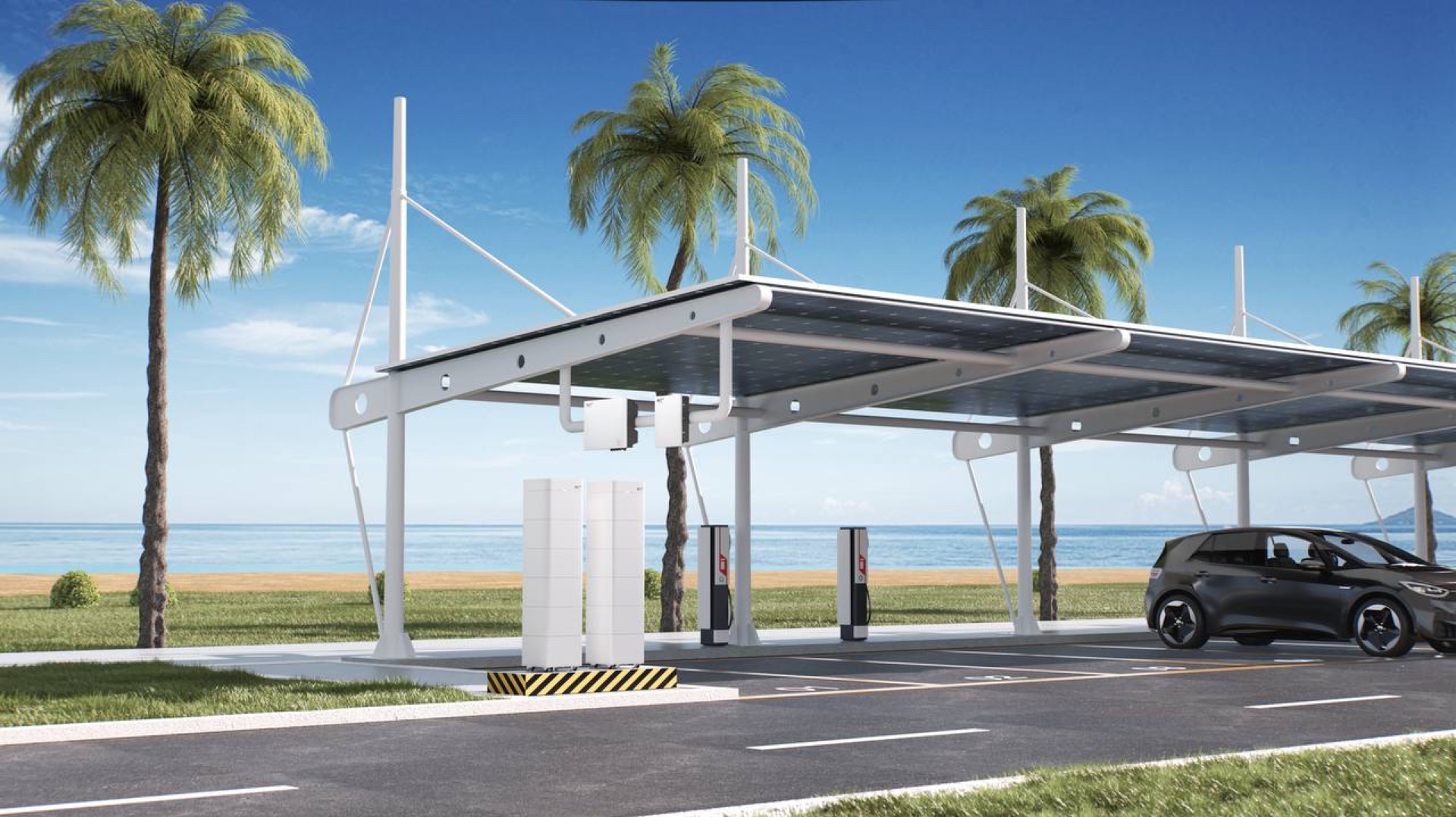

Less than 20 ms from grid to backup.
Automatically disconnects the home from the mains and switches to backup operation in less than 20 ms.
WALL-MOUNTED DESIGN

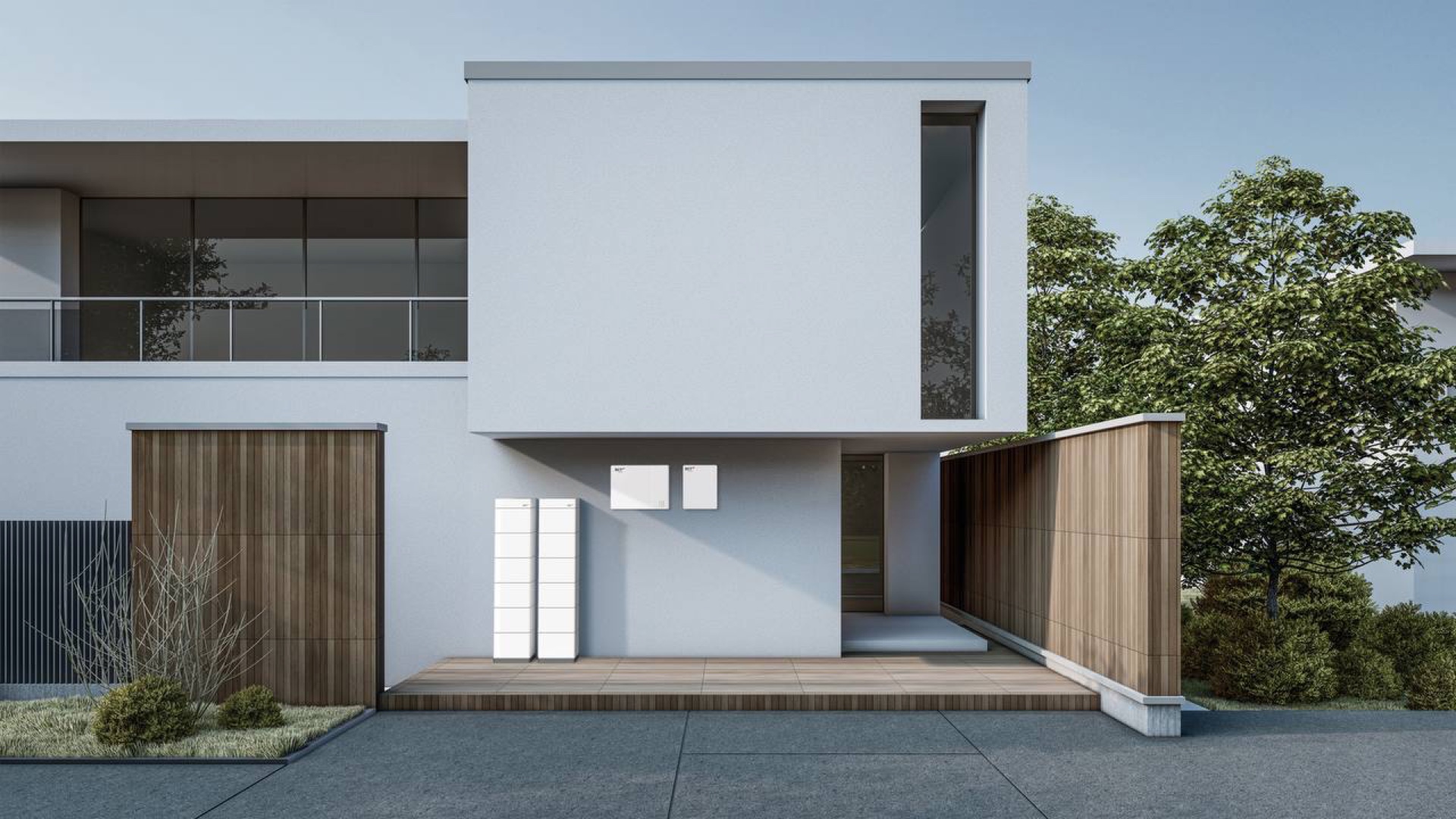

8 kg. Wall-mounted. IP65.
Compact 8 kg wall-mounted enclosure with IP65 protection for reliable installation.
Specs
Technical specifications
- Grid connection
- Single-phase
- Rated voltage
- 230 V
- AC Frequency
- 50 Hz
- Backup output
- 6000 VA
- Backup rated output current
- 26.1 A
- Switch-over time
- < 20 ms
- IP rating
- IP65
- Warranty
- 10 years
