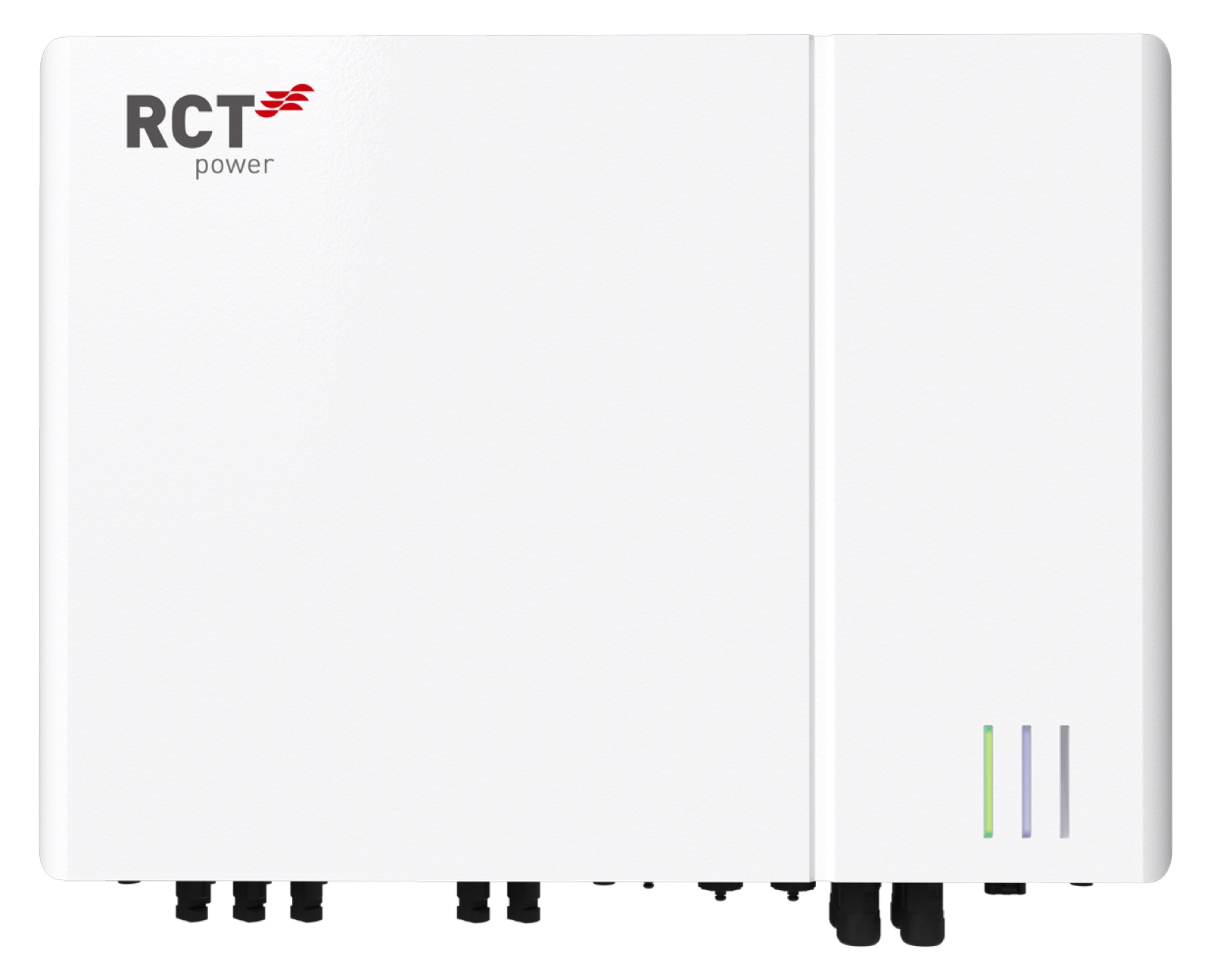

RCT Power Storage DC 5.0 | 6.0 SP

One silicon brain. Solar, battery, grid, load.

A DC-coupled hybrid inverter engineered to intelligently manage solar production, battery storage, and household energy use. Featuring up to 97.1 % efficiency, 3 independent MPPTs, and seamless integration with the RCT energy storage ecosystem.

Get a Quote See full specs

97.1%

Round-trip efficiency

3

Independent MPPTs

<10ms

Transfer switchover

6kW

Continuous output

DC-COUPLED ARCHITECTURE

Solar that goes straight to the battery.

Skip the lossy AC round-trip. The Power Storage DC inverter takes panel current directly into storage with one conversion stage, recovering yield that AC-coupled systems leave on the roof. Every kWh you harvest goes further.

WHOLE-HOME BACKUP

The grid drops. You don't notice.

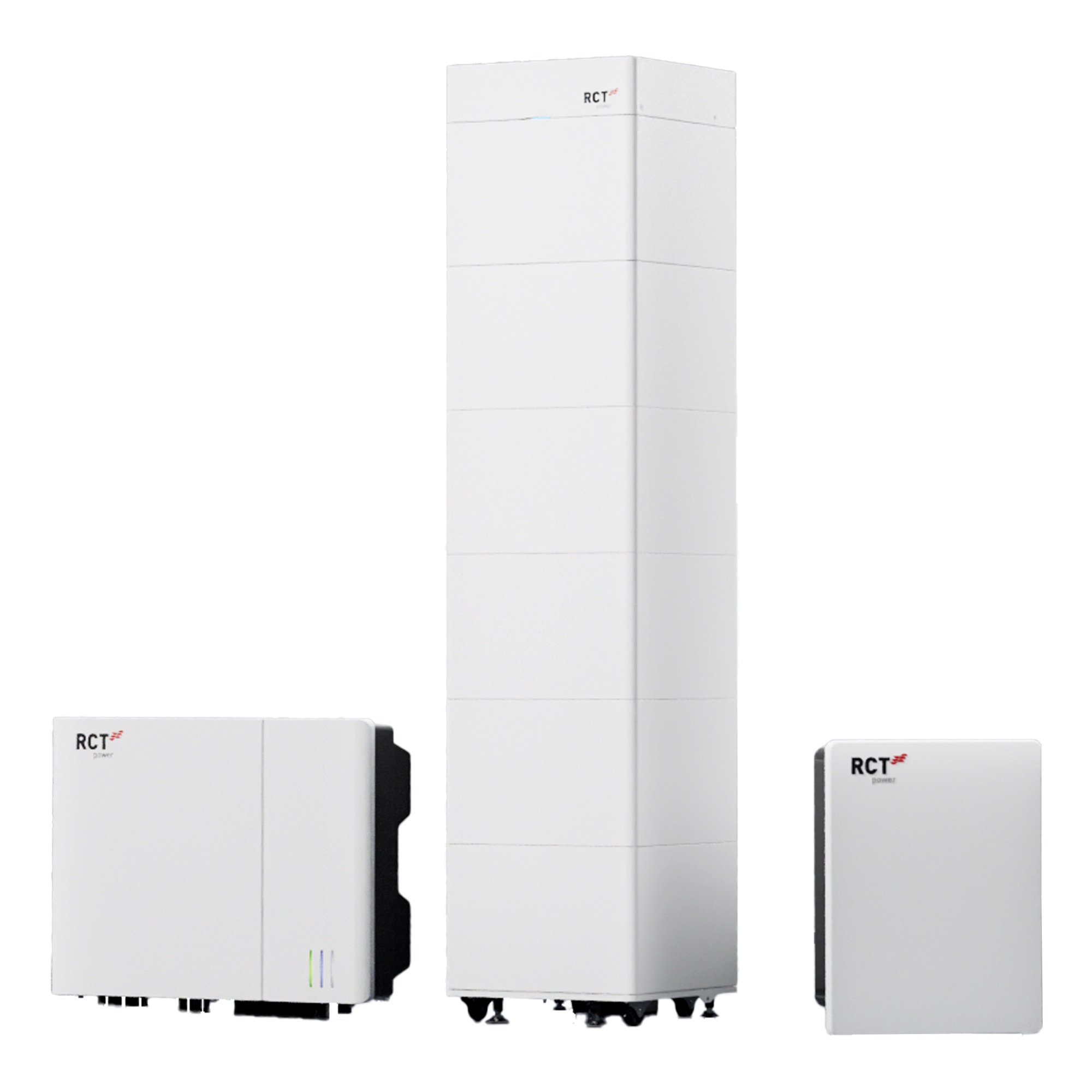

An integrated transfer switch reacts in under 10 milliseconds — fast enough that resistive loads stay lit and even sensitive electronics ride through. Pair with the RCT POWER Battery for an off-grid window measured in days, not minutes.

GRID-AWARE

Built for the grid you actually have.

Local frequency response, voltage support, and remote curtailment compliant with AS/NZS 4777.2. Hardware-ready for VPP enrolment and dynamic export. When your DNSP changes the rules, an OTA update keeps you compliant — no truck roll.

FULL TECHNICAL SPECIFICATIONS

Every number you'd want to verify.

AC side

Continuous output: 5 kW | 6 kW
Backup output: 5 kW | 6 kW
Phases: Single phase
Voltage range: 184 – 265 V
Frequency: 50 Hz ± 5 Hz
Compliance: AS/NZS 4777.2:2020

DC / PV side

MPP trackers: 3 (independent)
Max DC power: 12 000 W
MPP voltage: 90 – 580 V
Max PV current: 16 A / tracker
Battery DC voltage: 120 – 520 V
Round-trip efficiency: 97.1 %

Backup & general

Transfer time: < 10 ms
Off-grid restart: Yes (black-start)
Communication: RS485 / CAN / WLAN / LAN
IP rating: IP65
Acoustic: < 30 dB(A) at 1 m
Warranty: 10 years
